Chemical-Resistant Cleanroom Wall Panels for Pharmaceutical Disinfection Environments

Regulatory Driver

Why Disinfection Changes the Wall Panel Specification

EU GMP Annex 1 states that exposed cleanroom surfaces should be smooth, impervious and unbroken, and that cleanroom materials should permit repeated application of cleaning, disinfectant and sporicidal agents where used. This turns the wall panel from a construction product into part of the contamination control strategy.

The same logic appears in the FDA aseptic processing guidance, which references smooth, hard, easily cleanable walls and a system for cleaning and disinfecting the room in aseptic processing areas. For wall panels, the practical question is simple: can the installed surface still be cleaned and disinfected after years of wipe-down, impact, humidity, temperature cycling and maintenance?

When the surface becomes chalky, stained, cracked, swollen, delaminated or open at the seams, the issue is no longer cosmetic. The wall can shed particles, trap residue, harbour microbial risk or create locations that are difficult to inspect.

Material System

Chemical Resistance Is More Than the Visible Face Sheet

Disinfectant compatibility should be evaluated across the full wall system. The exposed HPL or coated steel face is the first defence, but liquid can migrate to cut edges, panel-to-panel joints, coved corners, door frames, window frames, pass boxes, pipe sleeves and electrical boxes. A chemically resistant face with weak edge sealing is still a weak cleanroom wall.

For HPL and other polymeric facings, chemical resistance can be screened with documented methods such as ASTM D543, which covers evaluation of plastic materials against chemical reagents. For coated steel, review coating data, film thickness, adhesion, corrosion resistance and disinfectant exposure evidence. For every material, the project protocol should match the actual chemical concentration, dwell time, wiping method and rinse practice.

HPL vs Steel

HPL and Coated Steel Panels Solve Different Problems

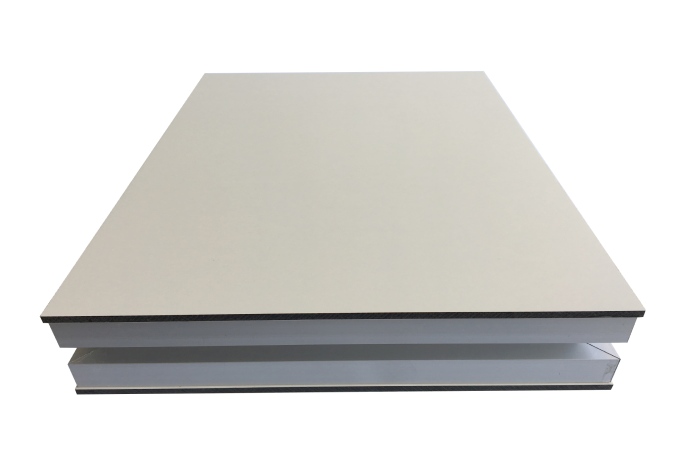

HPL cleanroom panels are often selected where the wall must resist frequent wipe-down, chemical exposure and impact. The dense surface can be strong in pharmaceutical corridors, formulation rooms, washing support areas and laboratories. The installation risk is usually at edges and junctions, so HPL projects need disciplined cutting, edge protection and compatible sealants.

Coated steel sandwich panels are widely used because they provide cleanability, dimensional stability and efficient modular installation. The key variables are coating type, pre-treatment, corrosion resistance, panel flatness, core selection and joint design. In harsh chemical zones, stainless steel or upgraded surface systems may be justified for selected splash or wash-down areas.

The right answer is not a single material for every room. A practical design often combines coated steel for general GMP rooms, HPL for high-touch and high-disinfection zones, and stainless steel protection near aggressive wet processes or high-impact locations.

Cleanability

Cleanability Depends on Junction Geometry, Not Only Surface Gloss

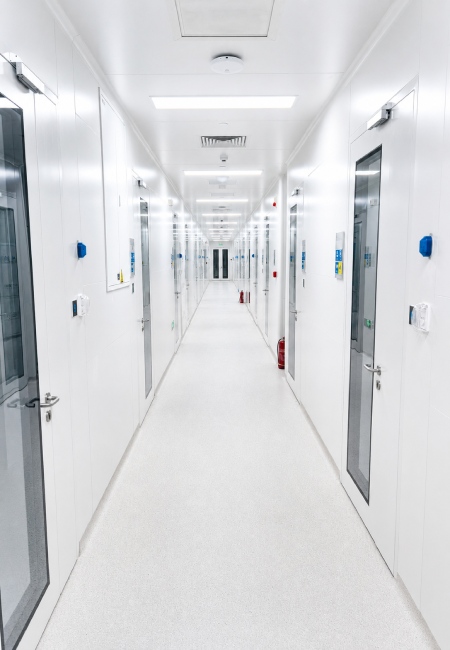

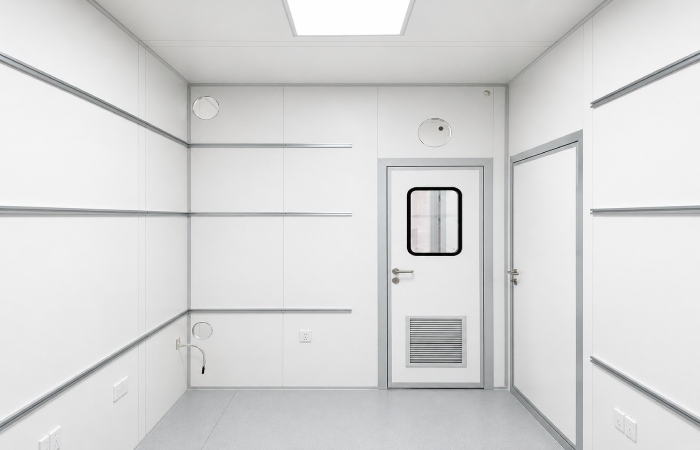

A glossy wall panel can still fail if the room contains ledges, open butt joints, rough silicone beads, exposed screw heads or recessed frames. Annex 1 warns against recesses that are difficult to clean effectively and calls for doors that avoid hard-to-clean recesses. Therefore, pharmaceutical wall panels should be paired with flush windows, flush cleanroom doors, sealed coving and controlled service penetrations.

ISO 14644-5:2025 frames cleanroom operation around an operations control programme that includes cleaning, maintenance and monitoring. For wall panels, that means the finished room should support the cleaning SOP: operators must be able to reach surfaces, remove residues, inspect seams and document damage before it becomes a contamination-control deviation.

• Use coved internal corners where routine disinfection requires continuous wipe paths.
• Keep vision windows, doors and pass boxes flush with the wall surface.
• Seal panel joints with materials compatible with the disinfectant rotation.
• Avoid exposed fasteners, rough sealant beads and moisture traps.

Core and Bonding

The Core Does Not Touch Disinfectant, but It Still Affects Long-Term Performance

The core of a cleanroom sandwich panel should be selected for fire performance, rigidity, flatness, acoustic needs and moisture sensitivity. Rock wool and magnesium oxide cores are common where fire performance and stiffness matter. Aluminium honeycomb can support very flat panels for premium wall and ceiling systems. PU or PIR cores may be considered where thermal insulation is the main driver, subject to the project fire strategy.

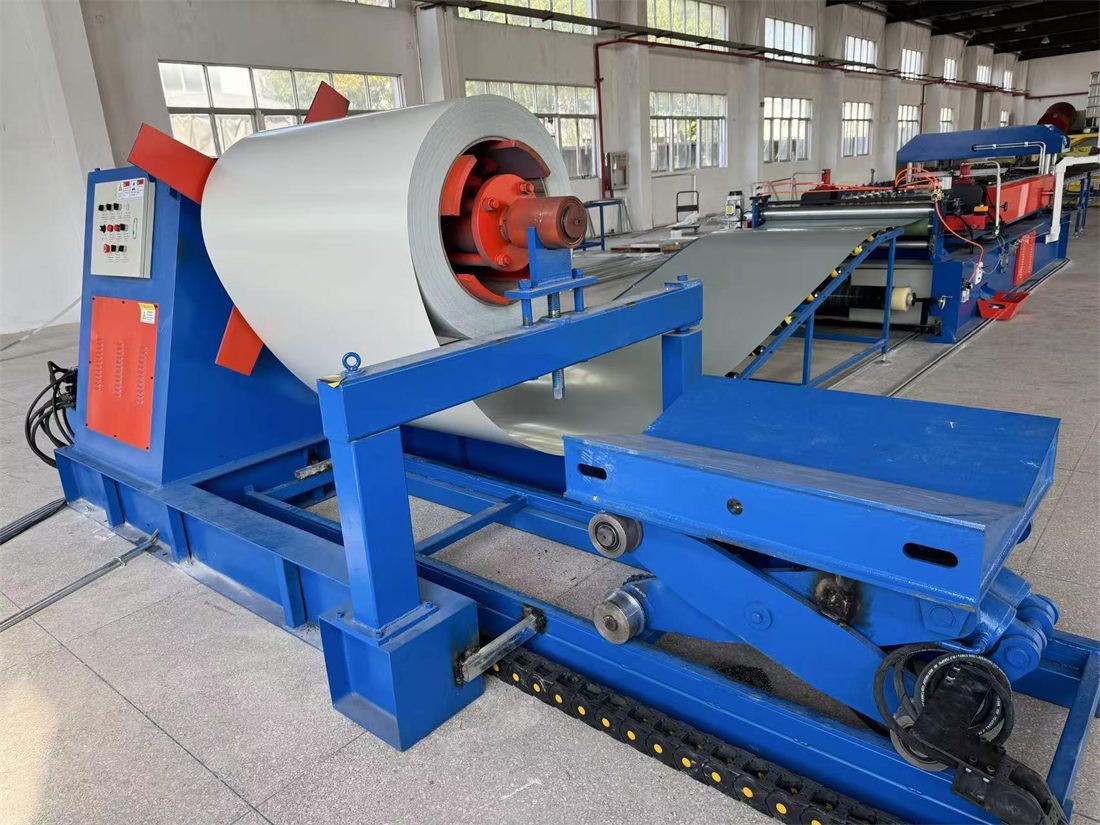

Bonding quality matters because repeated cleaning can introduce humidity and thermal cycling. If the panel face, core and adhesive are poorly matched, the result may be bubbling, drumming or delamination. For pharmaceutical projects, panel production control, incoming material records and site installation inspection should be part of the turnover package.

Qualification Package

What to Ask for Before Approving a Pharmaceutical Wall Panel

A reliable supplier should help connect wall construction to the facility's contamination control strategy. The submittal should not stop at panel thickness and color. It should show how the wall system will remain cleanable, sealed and inspectable under the facility's real cleaning programme.

• A matrix of disinfectants, concentrations, dwell times and acceptable surface changes.
• Surface material data for HPL, coated steel or stainless steel zones.
• Panel joint, corner coving, door frame, window frame and pass-box details.
• Core selection rationale for fire rating, stiffness, flatness and moisture exposure.
• Factory QA records for panel bonding, dimensions and surface finish.
• Site inspection checklist for scratches, open joints, sealant quality and cleanability.

Technical Fact Check

Source-Backed Facts Used in This Article

Referenced Standards

Referenced Standards and Public Access Notes

• EU GMP Annex 1, Manufacture of Sterile Medicinal Products: public PDF, used for premises, smooth surfaces, repeated cleaning and disinfectant compatibility.
• FDA Guidance for Industry, Sterile Drug Products Produced by Aseptic Processing: public PDF, used for cleanable walls and room cleaning/disinfection expectations.
• ISO 14644-5:2025: official ISO page for cleanroom operations. Full ISO standards are copyrighted and may require purchase; the official page provides abstract and publication status.
• ASTM D543-21: ANSI listing for chemical resistance evaluation of plastics. Full ASTM text may require purchase; use official/authorized sources for project qualification.
